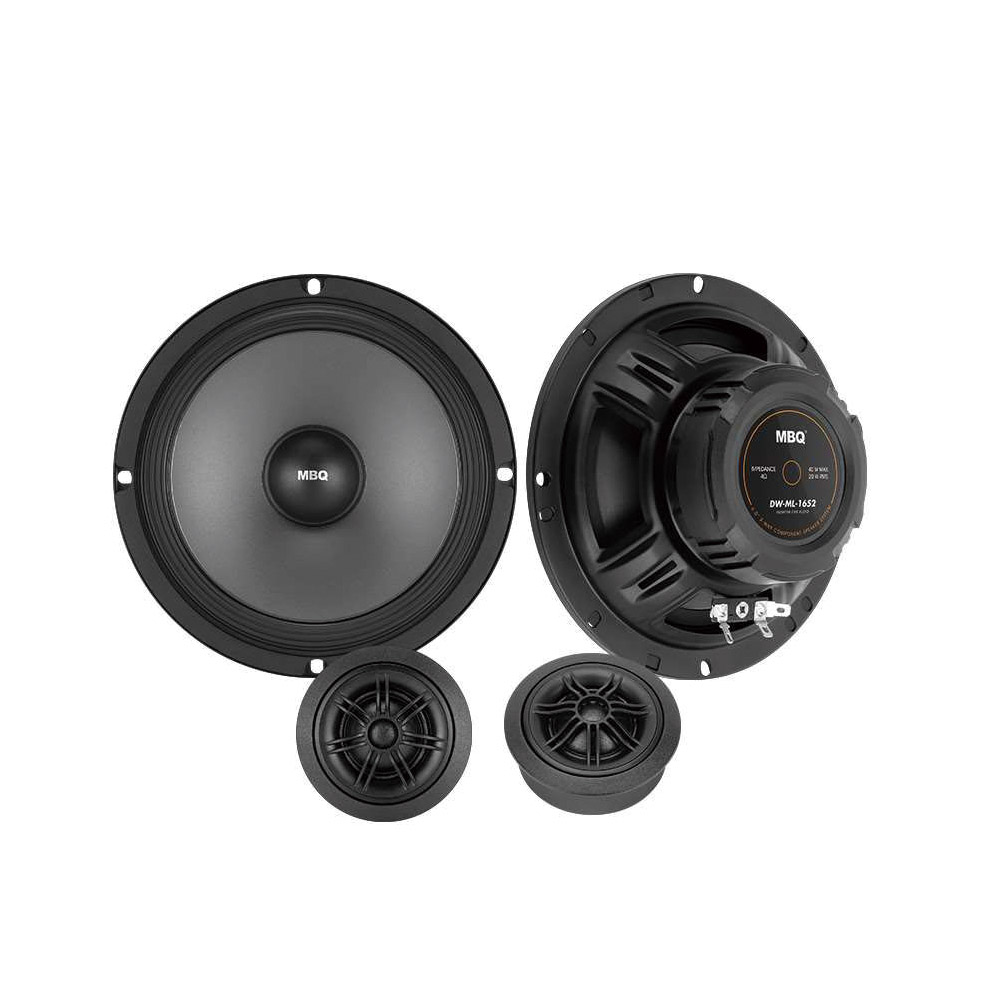

DW-ML-1652
MBQ
Overview
Rigid SPCC steel basket
High performance woofer with shallow mounting depth
Efficient neodymium tweeter
Product Description
Specifications

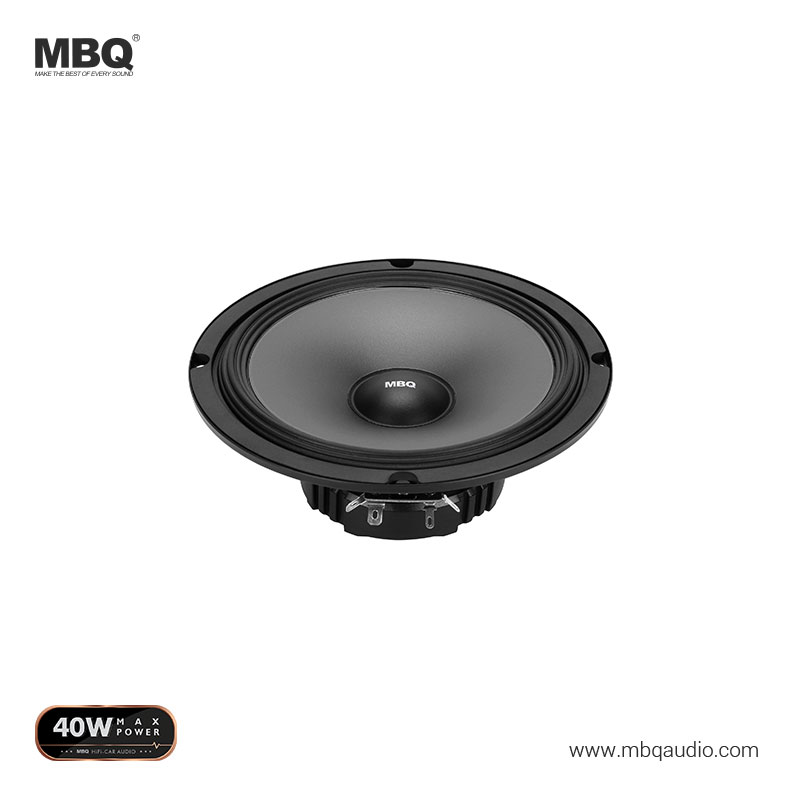

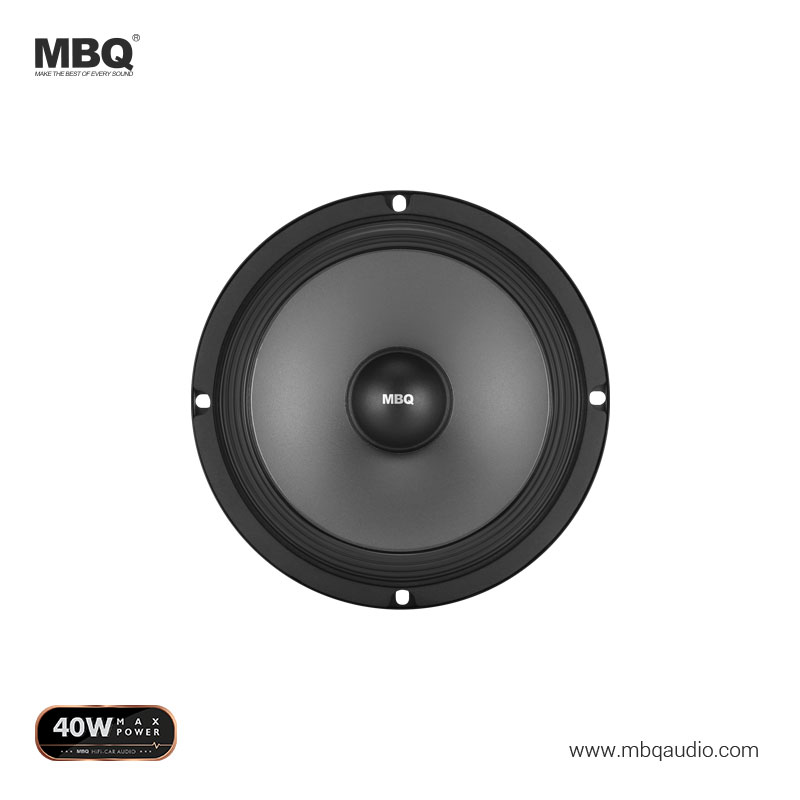

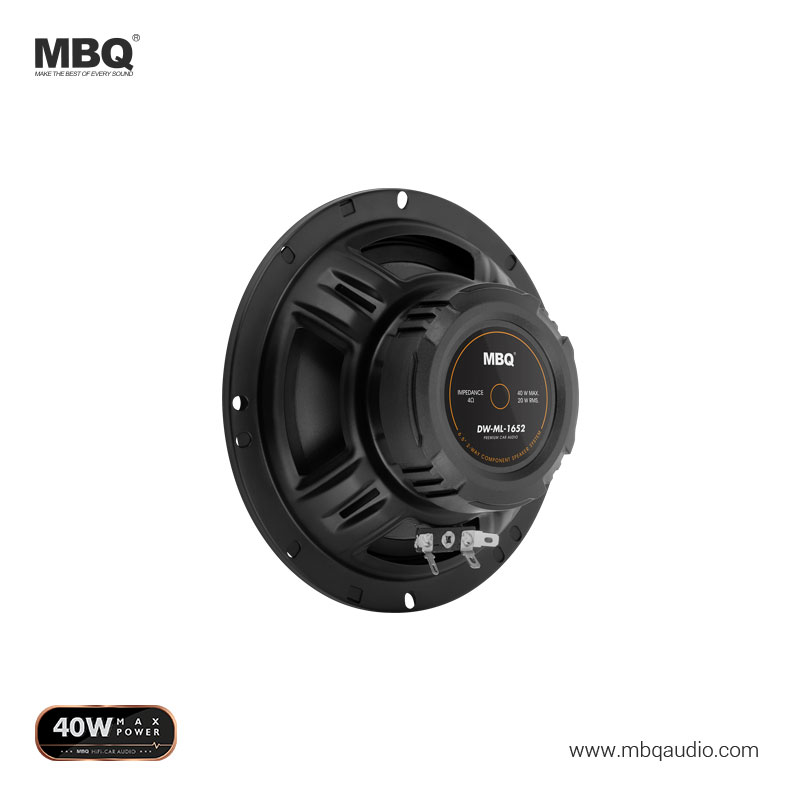

Woofer | |
Max. Power Handling | 40W |
RMS Power Handling | 20W |
Impedance | 4Ω |
Frequency Response | 70Hz-6000Hz |
Sensitivity (1W/1m) | 88dB |
Cone Material | Polypropylene |
Surround Material | NBR |
Dust Cap Material | Polypropylene |
Magnet Type | Ferrite |
Basket Material | Steel |
Spider Material | Blend Fiber |
Voice Coil Diameter | 25.5mm |
Mounting Depth | 58mm |

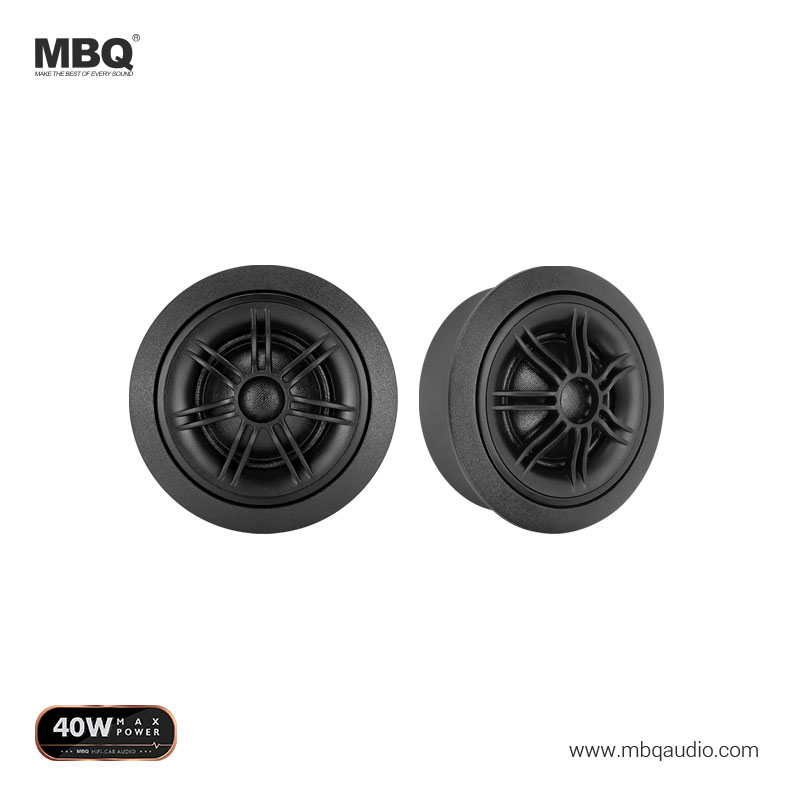

Tweeter | |
Tweeter Size | 0.75" |
Max. Power Handling | 25W |
RMS Power Handling | 15W |
Voice Coil Diameter | 20.4mm |
Impedance | 4Ω |
Frequency Response | 1500Hz-20kHz |
Sensitivity (1W/1m) | 88dB |
Tweeter Cone Material | Silk Dome |
Housing Material | ABS |
Magnet Type | Neodymium |
