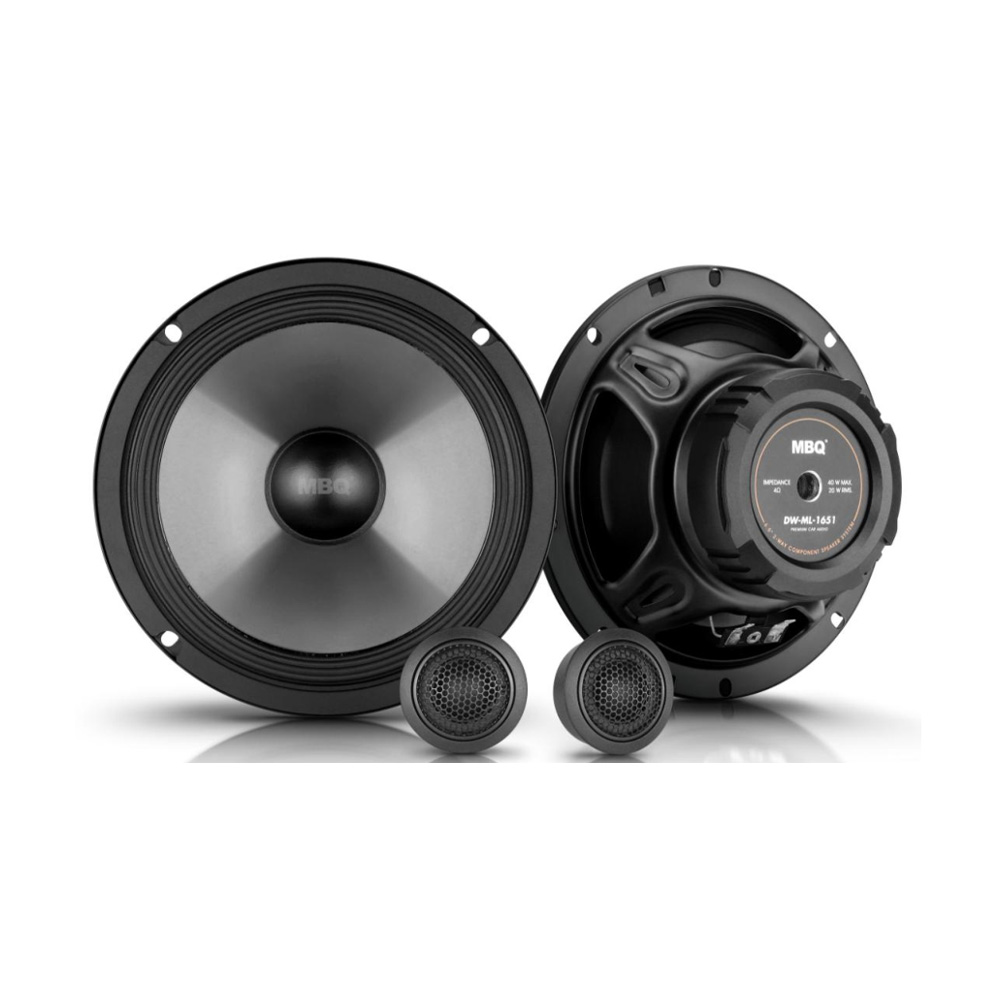

DW-ML-1651
MBQ
Overview

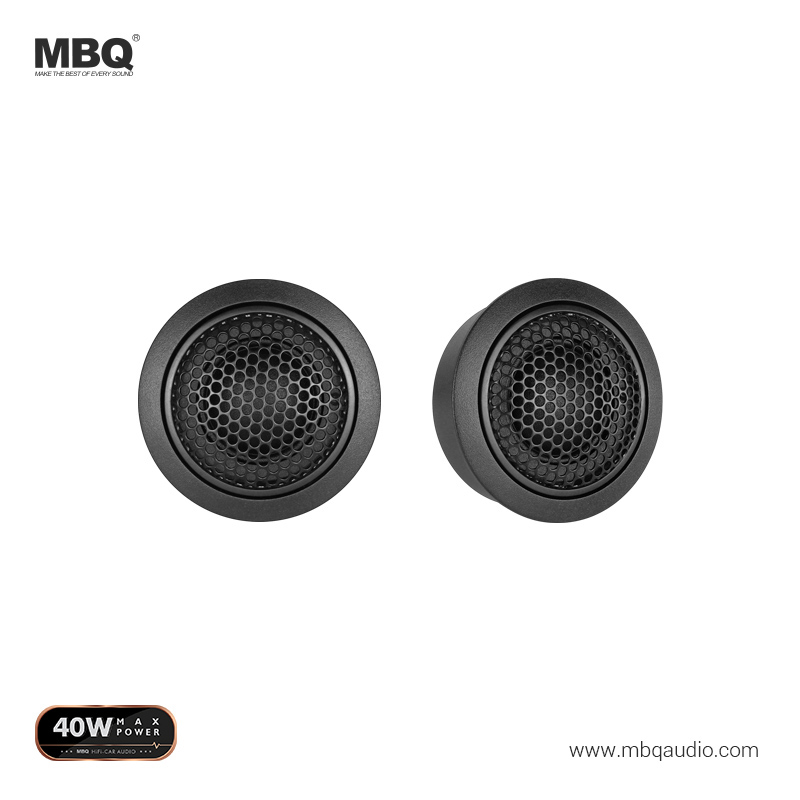

0.75" tweeter with silk dome and neodymium magnet.
Compact yet efficient in-line crossover.

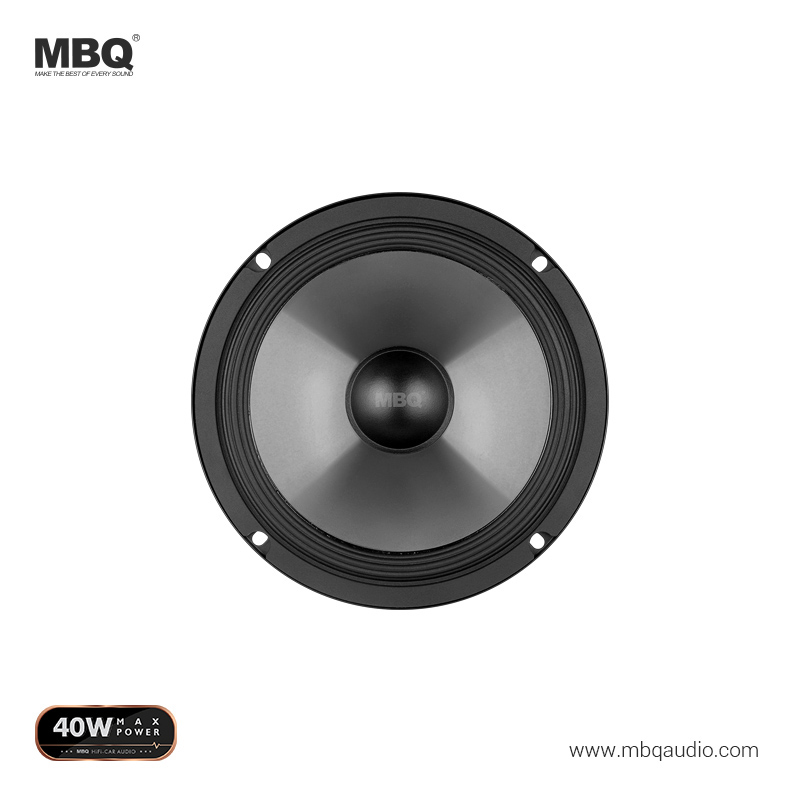

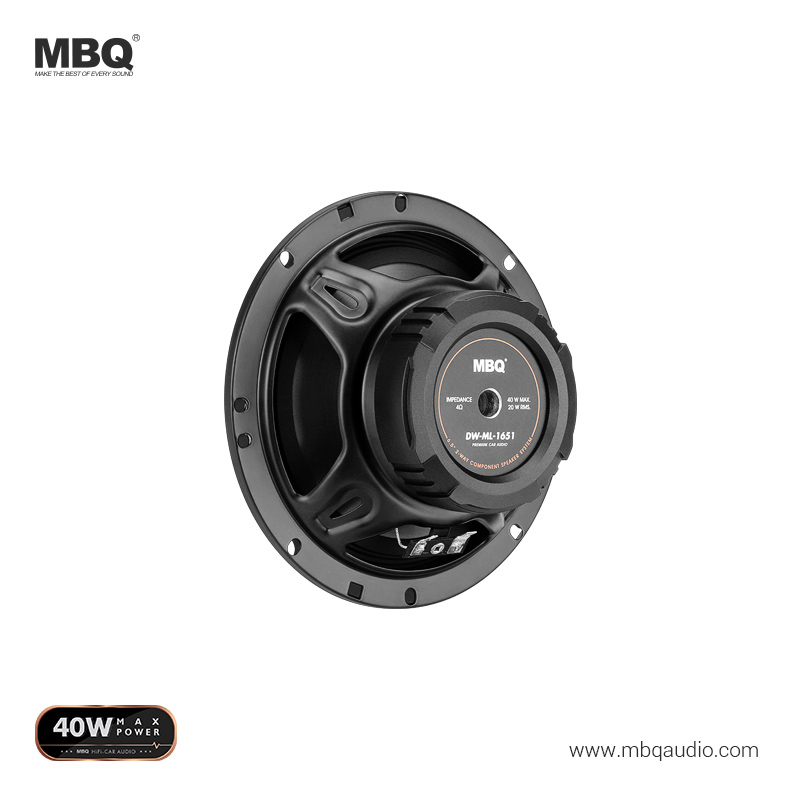

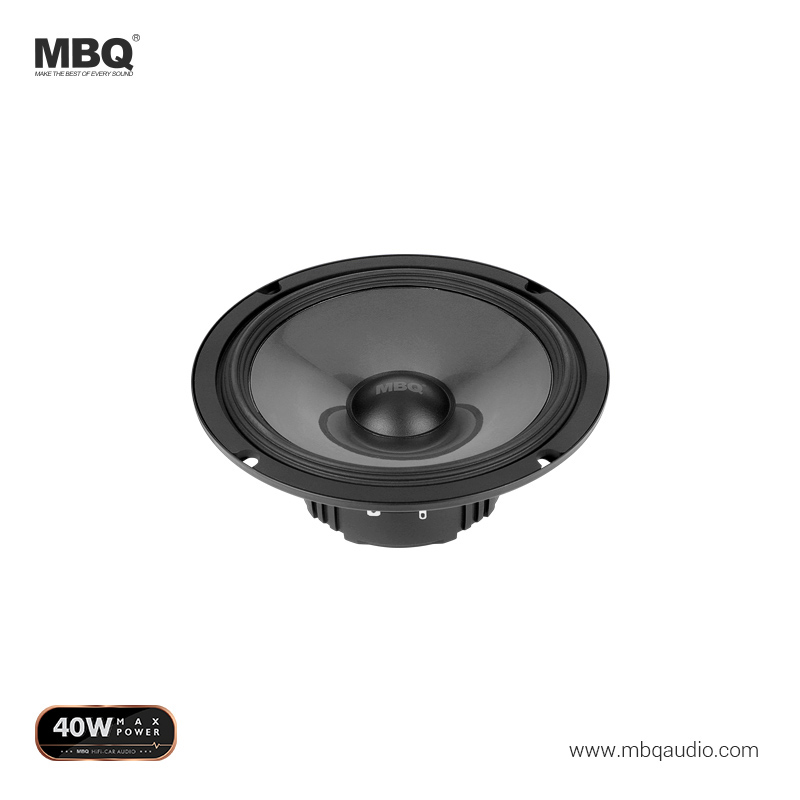

High performance woofer with steel basket, ferrite magnet, Polypropylene cone, NBR
surround and rubber magnet cover.
Product Description
Specifications
Woofer | |
Max. Power Handling | 40W |
RMS Power Handling | 20W |
Impedance | 4Ω |
Frequency Response | 70Hz-6000Hz |
Sensitivity (1W/1m) | 88dB |
Cone Material | Injected Polypropylene |
Surround Material | NBR |
Dust Cap Material | Polypropylene |
Magnet Type | Ferrite |
Basket Material | Stamped Steel |
Voice Coil Diameter | 25.5mm |
Mounting Depth | 56mm |
Tweeter | |
Tweeter Size | 0.75" |
Voice Coil Diameter | 20.4mm |
Impedance | 4Ω |
Frequency Response | 1700Hz-20kHz |
Sensitivity (1W/1m) | 89dB |
Tweeter Cone Material | Silk Dome |
Housing Material | ABS |
Magnet Type | Neodymium |
