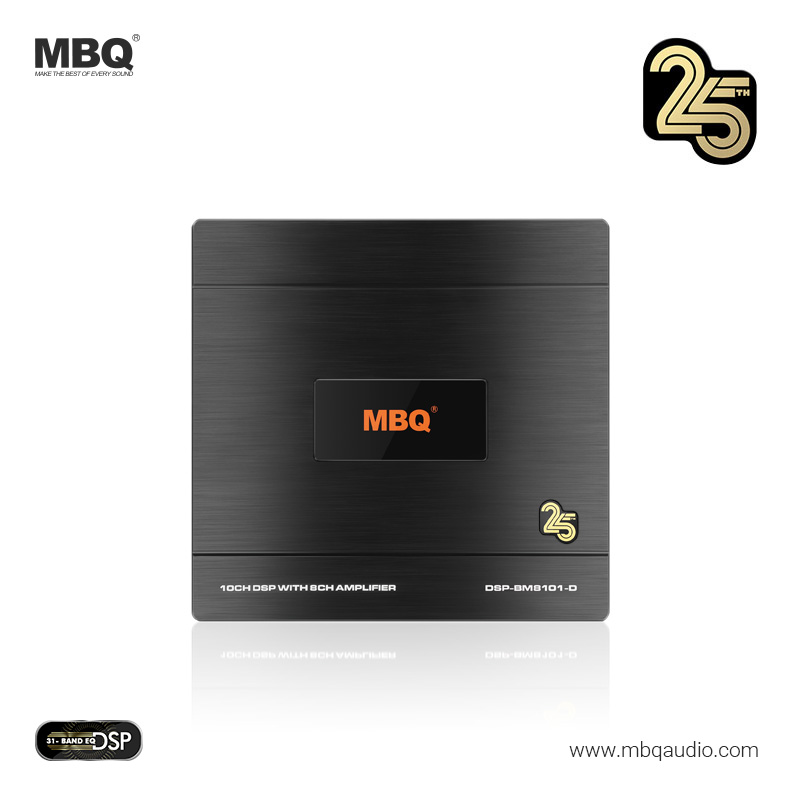

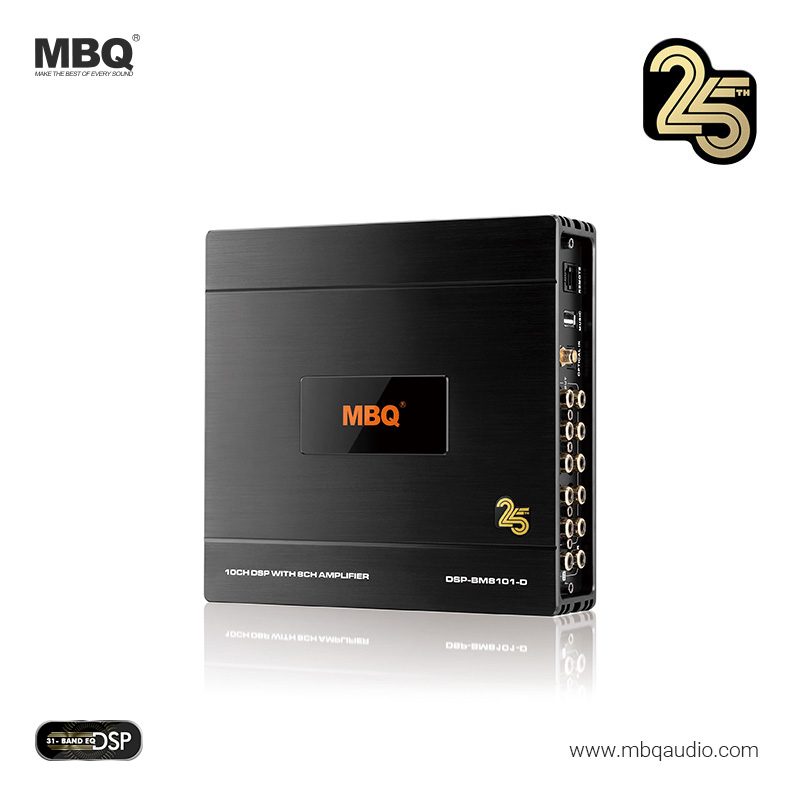

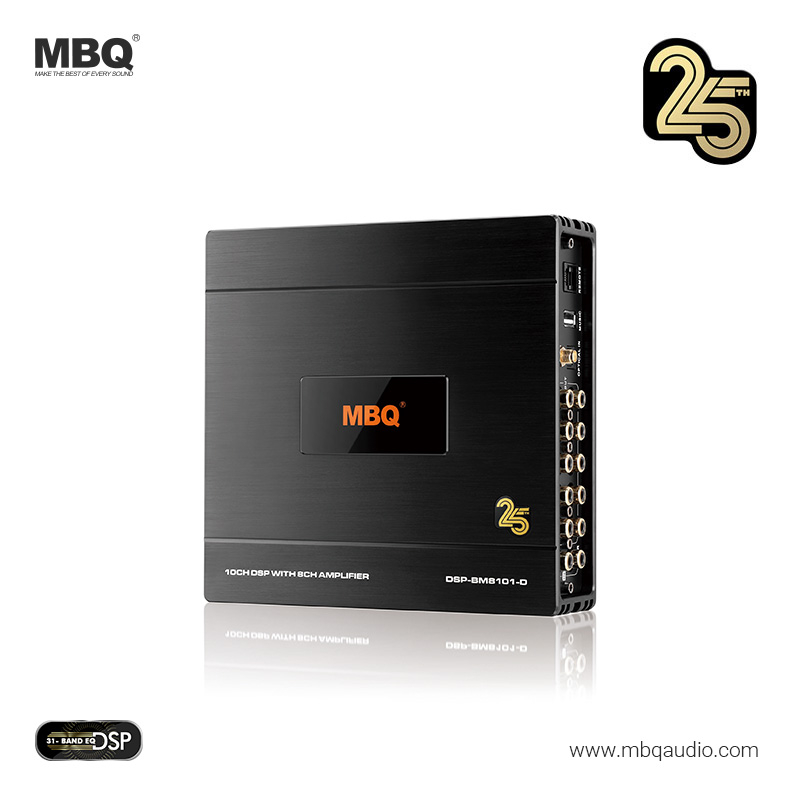

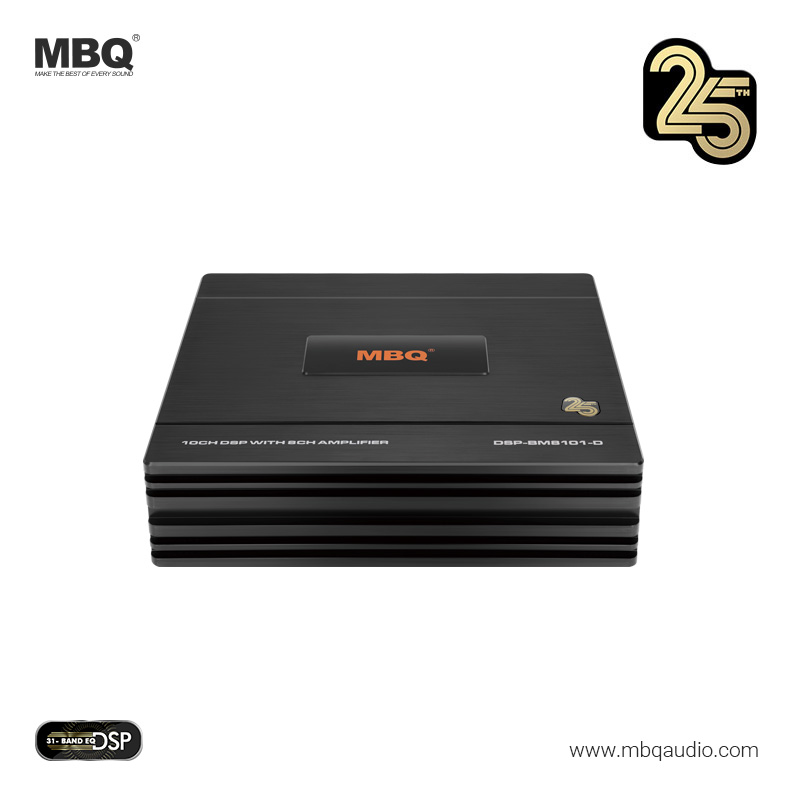

DSP-BM8101-D Car Audio System Upgrade Digital Signal Processor with 10-CH Power Amplifier

· Channels

· 10

· EQ

· 31-Band Graphic Equalizer

· Amplifier Type

· Class-D

· Power Output (Max)

· 8 x 120W @ 4Ω

· Power Output (RMS)

· 8 x 60W @ 4Ω

· Operating Voltage

· 14.4V DC (Range10.1V - 15.1V)

· Tuning Methods

· Windows PC Software / Android App

· Inputs

· 8-Channel High-Level (Speaker Input), 2-Channel Low-Level (RCA), USB (Flash Drive), Bluetooth 5.0, Optical Input, Digital Input (Coaxial)

· Outputs

· 8-Channel High-Level (CH1-8), 10-Channel Pre-Out (RCA)

· Frequency Response

· 20Hz - 20kHz

· Sampling Rate

· 24-bit / 48kHz

· DSP Chip

· AKM AK7735

· SNR (RCA Input)

· > 92dB

· SNR (Bluetooth/Optical)

· > 92dB

· THD+N

· ≤ 0.05% (≤ 0.01% via Audio Input)

· Channel Separation

· > 82dB

· Current Consumption

· 32A (Max) / ≤ 0.2mA (Standby)

· Fuse Rating

· 40A

· Chassis

· Extruded Aluminum Alloy

· Dimensions

· 178 x 171.6 x 44.5 mm (L x W x H)

· Net Weight

· 1.20 kg (2.65 lbs)
