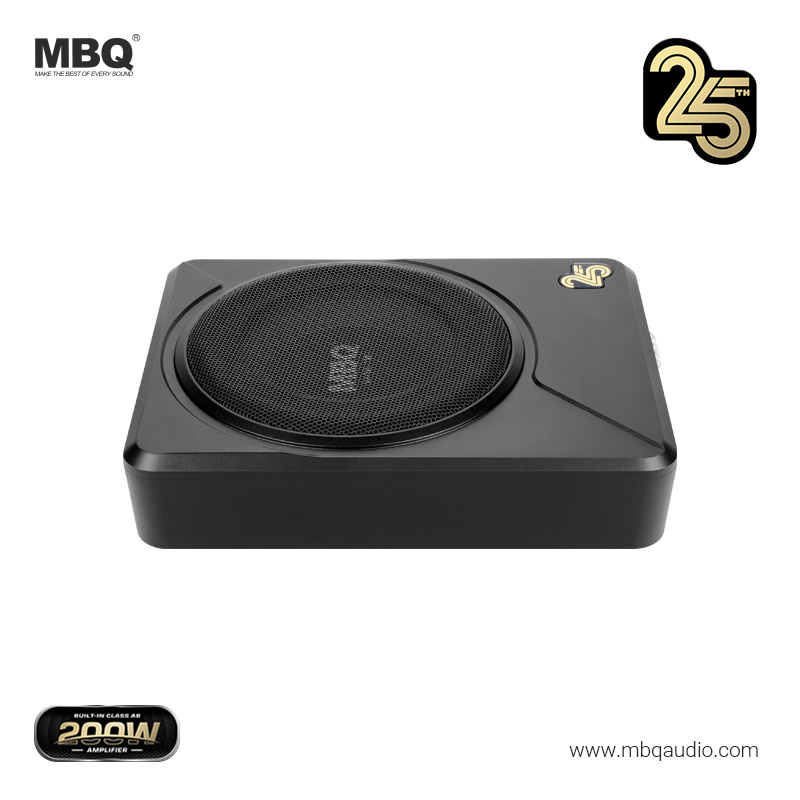

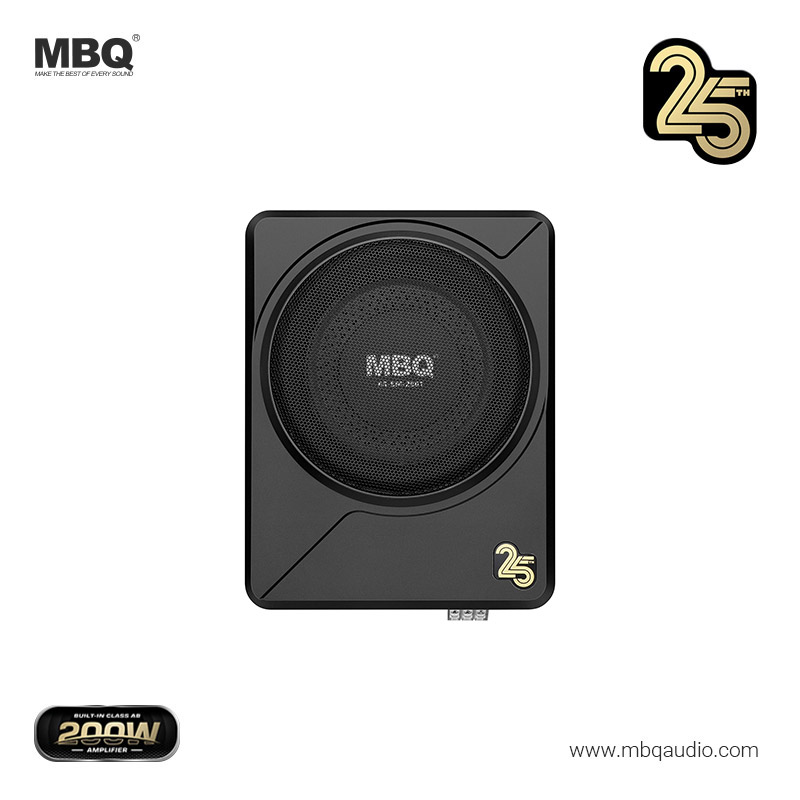

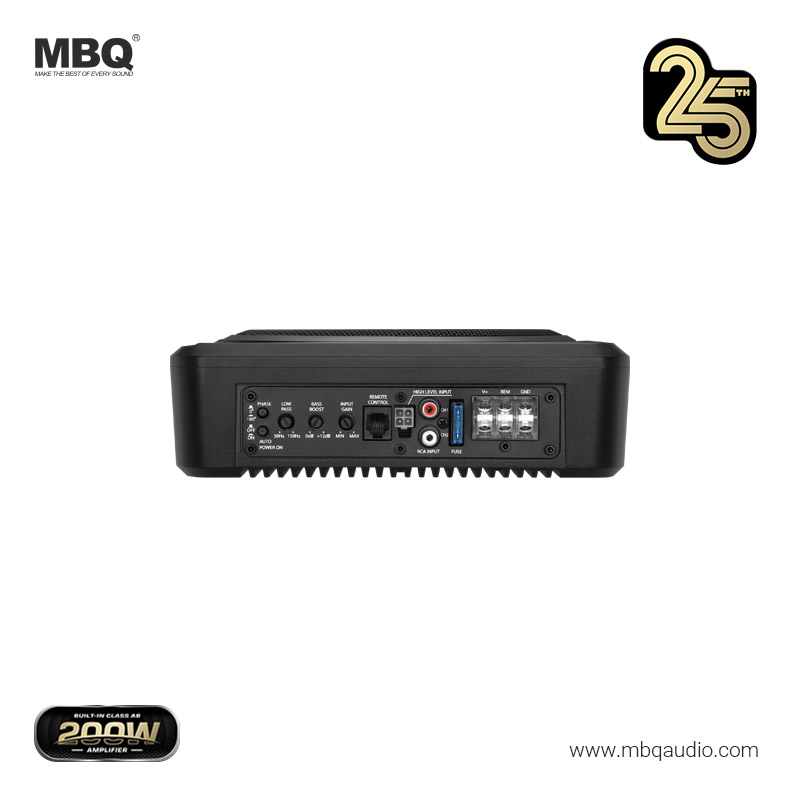

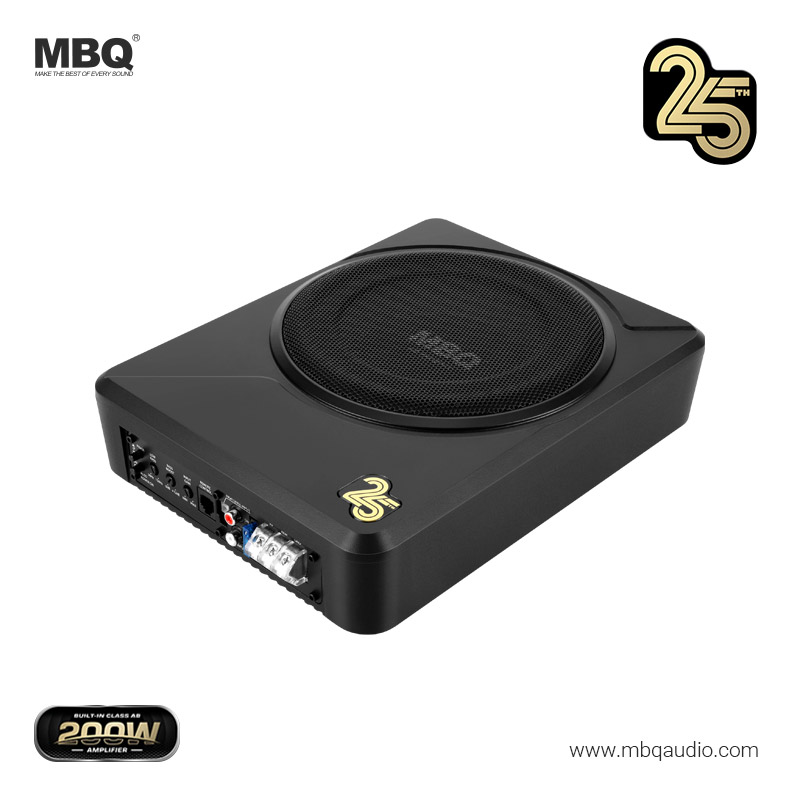

AS-BM-2001
MBQ
Overview
Compact Design for Underseat Installation
Rigid Cast Aluminum Sealed Enclosure
Optimized Subwoofer Unit with Aluminum Cone & Basket
Built-in Class AB 200W Amplifier
Product Description
Specifications
Subwoofer Speaker Size | 8" |
RMS Output Power | 100W |
Max. Output Power | 200W |
Voice Coil Diameter | 35.55mm |
Built-in Amplifier Type | Class AB |
Frequency Response | 30Hz-150Hz |
Impedance | 3Ω |
Signal-to-noise Ratio | 91dB |
Total Harmonic Distortion | <1% |
Hi-Level Input Sensitivity | 1V |
Low-level Input Sensitivity | 0.4V |
Working Voltage | 14.4V(10V-16V) |
Fuse Rating | 15A |
Phase Switch | 0°/180° |
Low Pass Filter | 50Hz-150Hz |
Bass Boost | 0 - +12dB |
Auto Turn ON/OFF | Hi-level Input Only |
Surround Material | Rubber |
Dust Cap Material | Steel |
Magnet Type | Ferrite |
Basket Material | Steel |
Enclosure Material | Cast Aluminum |
Enclosure Type | Sealed |
Dimensions | 300 x 230 x 75mm |
Net Weight | 3.8kg |
