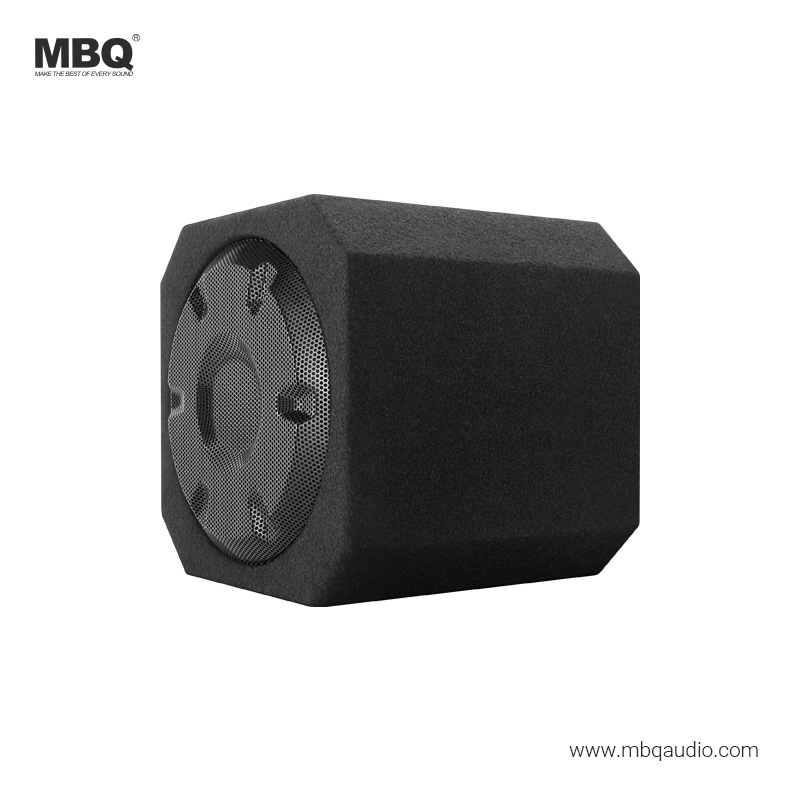

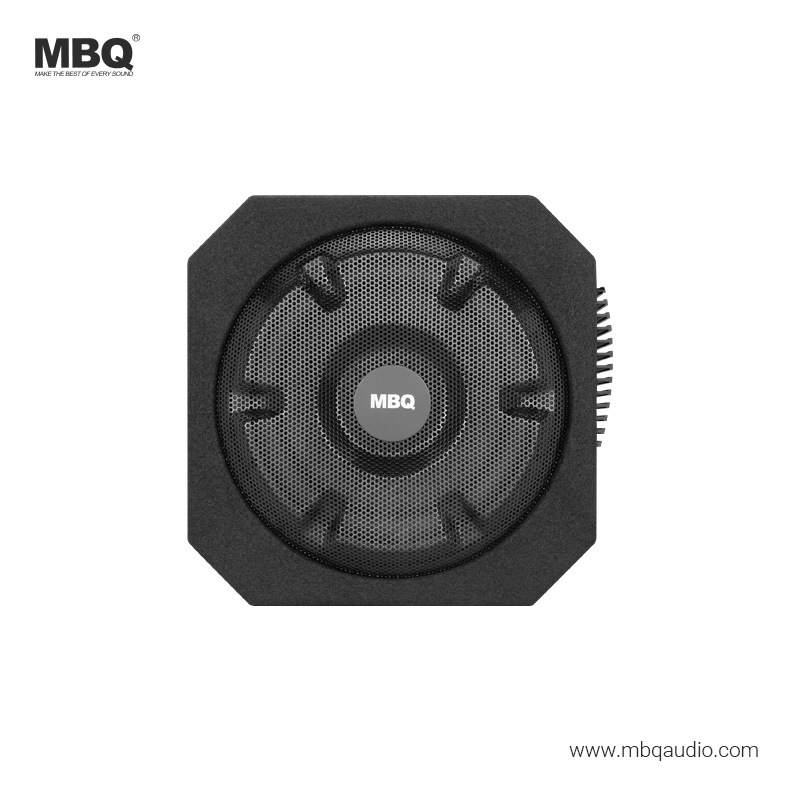

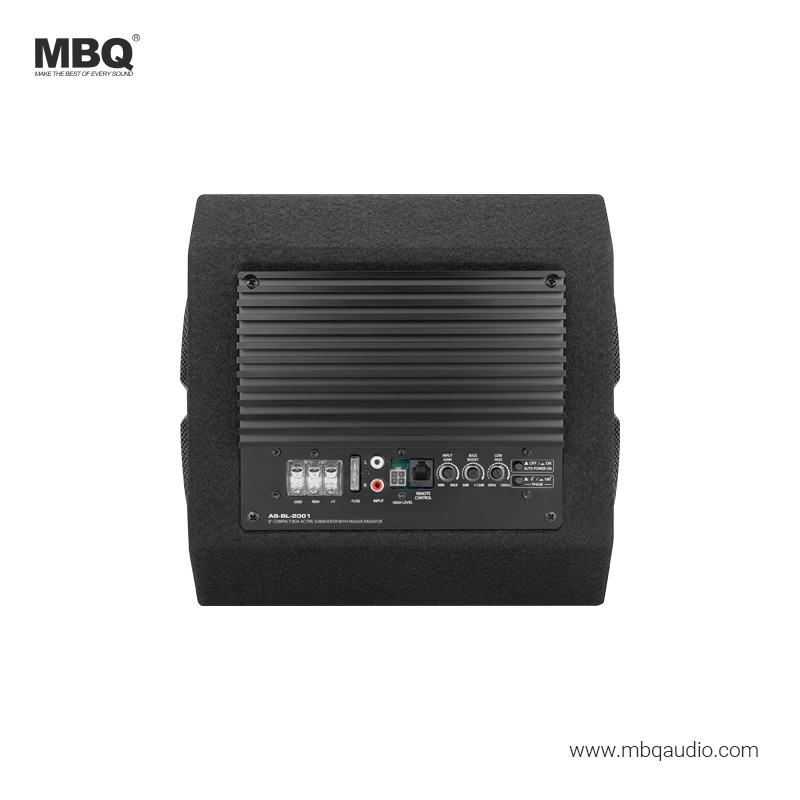

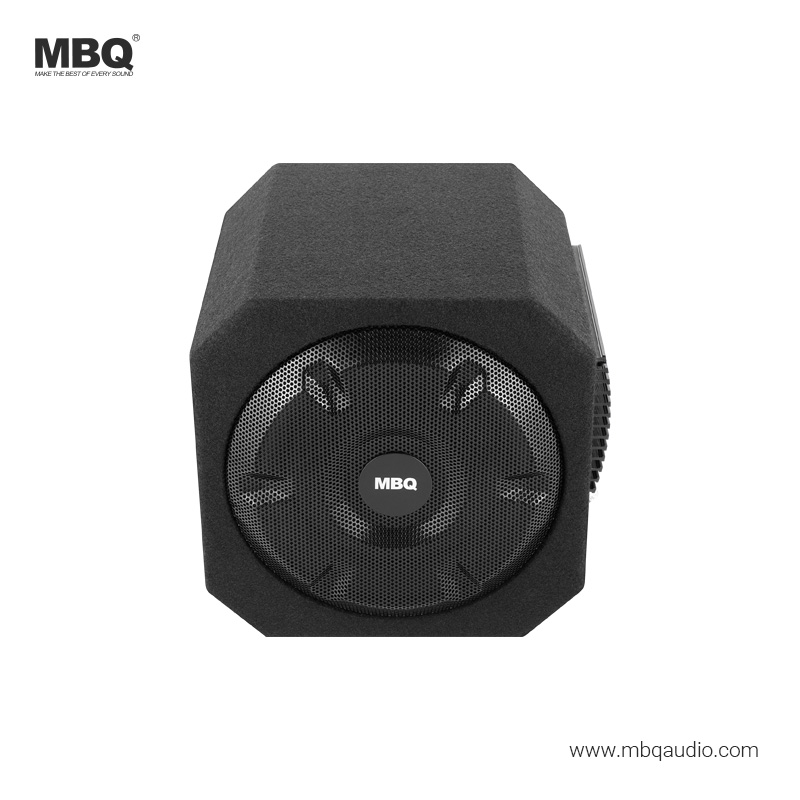

AS-BL-2001
MBQ
Overview
Ultra-compact Sealed Box Design
Optimized 8" Subwoofer Unit
with 8" Passive Radiator Speaker
Built-in Class AB 300W Max. Output Power Amplifier
20Hz Low Resonant Frequency
Product Description
Specifications
Subwoofer Speaker Size | 8" |
RMS Output Power | 130W |
Max. Output Power | 300W |
Built-in Amplifer Type | Class AB |
Frequency Response | 20Hz-150Hz |
Impedance | 4Ω |
Signal-to-noise Ratio | 91dB |
Hi-Level Input Sensitivity | 2V-10V |
Low-level Input Sensitivity | 0.6mV-4V |
Working Voltage | 14.4V(10V-16V) |
Fuse Rating | 10A |
Phase Switch | 0°/180° |
Low Pass Filter | 50Hz-100Hz |
Bass Boost | 0 ~ +12dB |
Auto Turn ON/OFF | Hi-level Input Only |
Subwoofer Cone Material | Pressed Paper |
Surround Material | NBR |
Dust Cap Material | Composite Paper |
Magnet Type | Ferrite |
Basket Material | Steel |
Voice Coil Diameter | 38.55mm |
Enclosure Material | MDF |
Enclosure Type | Sealed |
Dimensions | 256x256x272mm |
Net Weight | 6.7kg |
